Description
Overview

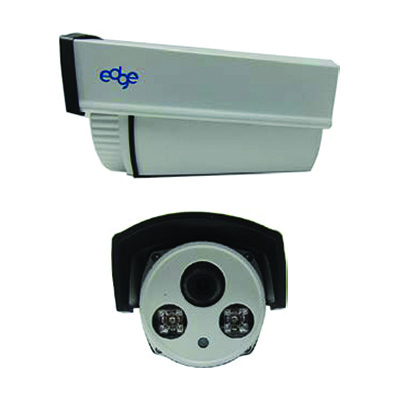

Equipped with high resolution 2 Super IR LED, this outdoor camera possesses satisfactory minimum illumination to provide clear and sharp images. It can be easily installed at any places to resist outdoor weather during sunny or rainy day.
Features
- Up to 5 Mega Pixel resolution and high quality picture.
- IR effective distance up to 50 Meters.
- High reliability under long time operation.
Specification
| MODEL | 504 IP50 |
| Image Sensor | 1/2.8” CMOS Progressive scan with SONY 335 |
| Image Architecture | Hi Silicon 3516EV300 |
| Resolutions | 5 Mega Pixel |
| Minimum Illumination | 0.004 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| IR Distance | 2 Super IR LED with range up to 50 Meters |
| Video Output | 1.0 Vp-p / 75 ohm composite |
| Lens | 3.6mm, 6mm, 8mm, 12mm, 16mm |
| Electronic Shutter | Auto 1/60 (1/50) ~ 1/100,000 sec / FLK |
| POE | Support |
| ONVIF | Ver 2.4 |
| Day & Night | IR Cut auto switch |
| Power Source | DC 12V ± 10% / 1A |
| Current | 420mA(Max) |
| Power Consumption | 4.5W |
| Coaxial Cable Transmission (3C/5C) | 300/500 M |
| Twisted Cable Transmission (Cat 5) | 300 M |
| Weather proof | IP 66 |
| Material | Aluminum Metal and Case |
