Description

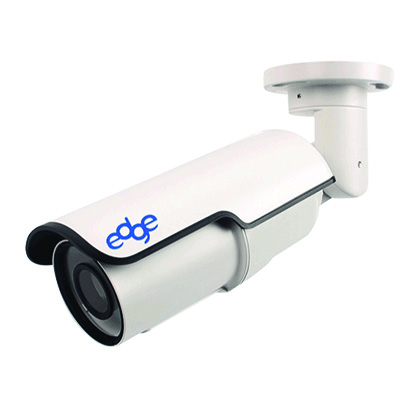

Varifocal Outdoor IR Camera
Overview
Equipped with high resolution 42 IR LED, this Varifocal outdoor camera possesses satisfactory minimum illumination to provide clear and sharp images. It can be easily installed at any places to resist outdoor weather during sunny or rainy day.
Features
- Up to 2 Mega Pixel at 1080p resolution and high quality picture by CMOS.
- IR effective distance up to 50 Meters.
- High reliability under long time operation.
Specification
| MODEL | 505V HD20XF |
| Image Sensor | 1/2.8” 10X CMOS |
| Resolutions | 2 Mega Pixel (1920 x 1080) |
| Minimum Illumination | 0.04 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| IR Distance | 42 IR LED with range up to 50 Meters |
| Video Output | 1.0 Vp-p / 75 ohm composite |
| Lens | Varifocal 2.8 – 8mm |
| Lens Angle | 90°(2.8 mm) until 39°(8.0 mm) |
| Electronic Shutter | Auto 1/60 (1/50) ~ 1/50,000 sec / FLK |
| Day & Night | IR Cut auto switch |
| Power Source | DC 12V ± 10% / 1A |
| Current | 340mA(Max) |
| Power Consumption | 4.5W |
| Coaxial Cable Transmission (3C/5C) | 300/500 M |
| Twisted Cable Transmission (Cat 5) | 300 M |
| Weather proof | IP 66 |
| Material | Aluminum Metal and Case |
